Description
Premium Indoor Grow Light for Enhanced Plant Growth
High-Performance Samsung LM301H EVO LEDs
Engineered with cutting-edge Samsung LM301H EVO diodes, each delivering an impressive 3.14 µmol/J PPE. These LEDs outperform LM301B, LM301H, and Bridgelux 3030 chips, ensuring optimal efficiency and maximum light output for superior plant growth.
Smart Features for Precision Control
Equipped with advanced schedule programming, sunrise/sunset dimming, and 10 adjustable brightness levels. Seamlessly integrate with the UIS™ platform for remote control and advanced automation via the AC Infinity app. Manage your grow light effortlessly from anywhere.

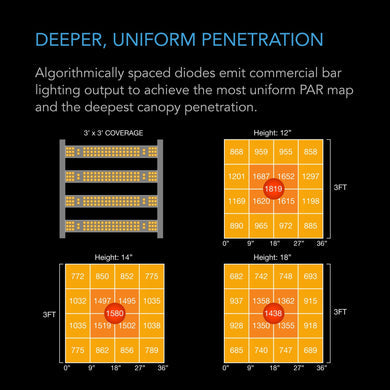

Bar-Style Design for Even Coverage
This fixture features algorithmically spaced diodes that ensure uniform light distribution, deep canopy penetration, and reduced hotspots. Its compact yet powerful design is ideal for both grow tents and larger grow spaces.
Enhanced Heat Management
The passive cooling LED driver is detachable, allowing remote mounting for balanced heat dissipation. The robust steel and aluminum build supports magnetic mounting and is IP-65 rated to withstand humid environments, ensuring durability in challenging conditions. Daisy-chain up to 80 grow lights for larger setups.
Optimal Coverage Area
- Vegetative Coverage: 120 x 120 cm (4 x 4 ft.)
- Flowering Coverage: 90 x 90 cm (3 x 3 ft.)
Specifications
- Power: 300W
- Diodes: 896 Samsung LM301H EVO
- PPFD: 1819
- Certification: ETL #5021417
- Plug: Ships with an Australian power plug, ready to use out of the box.

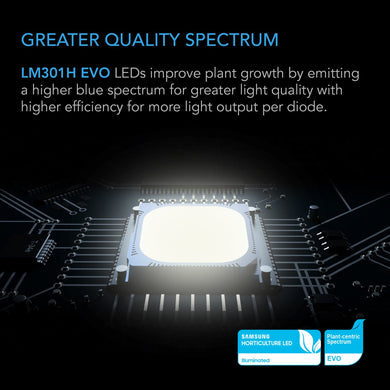

Cutting-Edge Full-Spectrum Lighting
Harness the power of Samsung LM301H EVO diodes, the industry leader in horticulture lighting. These advanced diodes provide a higher blue spectrum and unmatched efficiency, improving plant growth rates and yields. The light spectrum is enhanced with additional (4) 395 nm UV, (28) 660 nm red, and (4) 730 nm far-red OSRAM diodes, creating a complete full-spectrum solution.

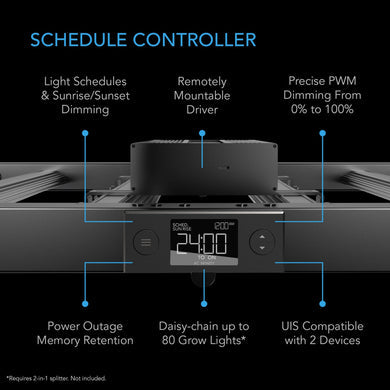

Smart Scheduling and Automation

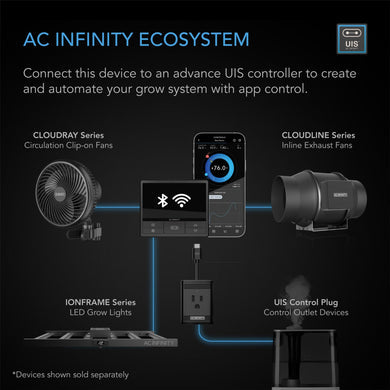

The included controller allows precise light scheduling and intensity adjustment with 10 brightness levels. Simulate natural light cycles with sunrise and sunset dimming. For advanced automation, integrate this grow light into the UIS™ platform using the CONTROLLER 69 PRO. Access WiFi-enabled remote control and detailed grow recipes through the AC Infinity app, empowering you to create an optimized growing environment.
Why Choose This Grow Light?
- Industry-leading Samsung LM301H EVO diodes for unmatched efficiency
- Smart controls for customizable lighting schedules and automation
- Robust, durable design with superior heat management
- ETL-certified safety and IP-65-rated for humid conditions
- Plug-and-play setup with an Australian power plug
Transform your grow setup with the IONFRAME EVO, designed to elevate your indoor gardening experience with superior performance, precision control, and long-lasting reliability. Perfect for growers who demand the best.
IONFRAME EVO4 Product Specifications
Product Identification
| Feature | Details |
|---|---|
| Product Name | IONFRAME EVO4 |
| Manufacturer | AC Infinity Inc. |
| Model | AC-IF4K |
| UPC Code | 819137024052 |

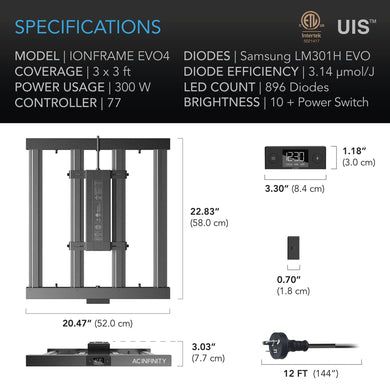

Product and Mounting Dimensions
| Feature | Metric Dimensions |
|---|---|
| Light Dimensions | 52.0 x 58.0 x 7.6 cm |
| Driver Dimensions | 18.2 x 4.0 cm |
Product Performance and Technical Specs
| Feature | Metric Details |
|---|---|
| Coverage Area | 90 x 90 cm |
| Diodes | Samsung LM301H EVO |
| Spectrum | 395 nm, 660 nm, 730 nm, 3000K, 5000K |
| Chip Count (Total) | 896 |
| Chip Count (EVO 3000K) | 360 |
| Chip Count (EVO 5000K) | 500 |
| Chip Count (Seoul 395 nm) | 4 |
| Chip Count (OSRAM 660 nm) | 28 |
| Chip Count (OSRAM 730 nm) | 4 |
| LED Driver | SOSEN-320W |
| Efficiency (Single Diode) | 3.14 µmol/J |
| PPFD | 1819 µmol/m²/s |
| Wattage | 300 W |
| Voltage | 100-277V AC |
| Frequency | 50/60 Hz |
| Amps | 3.0 A Max. |
| Controller | Schedule Controller |
| Power Connector Type | Australian Power Plug |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 0 to 60°C |
| Waterproof Rating | IP-65 |
| Life Expectancy | 50,000 Hours |
| ETL Certification | Yes |
