Description
Professional 4-Stage Digital Ballast for MH & HPS Grow Lights

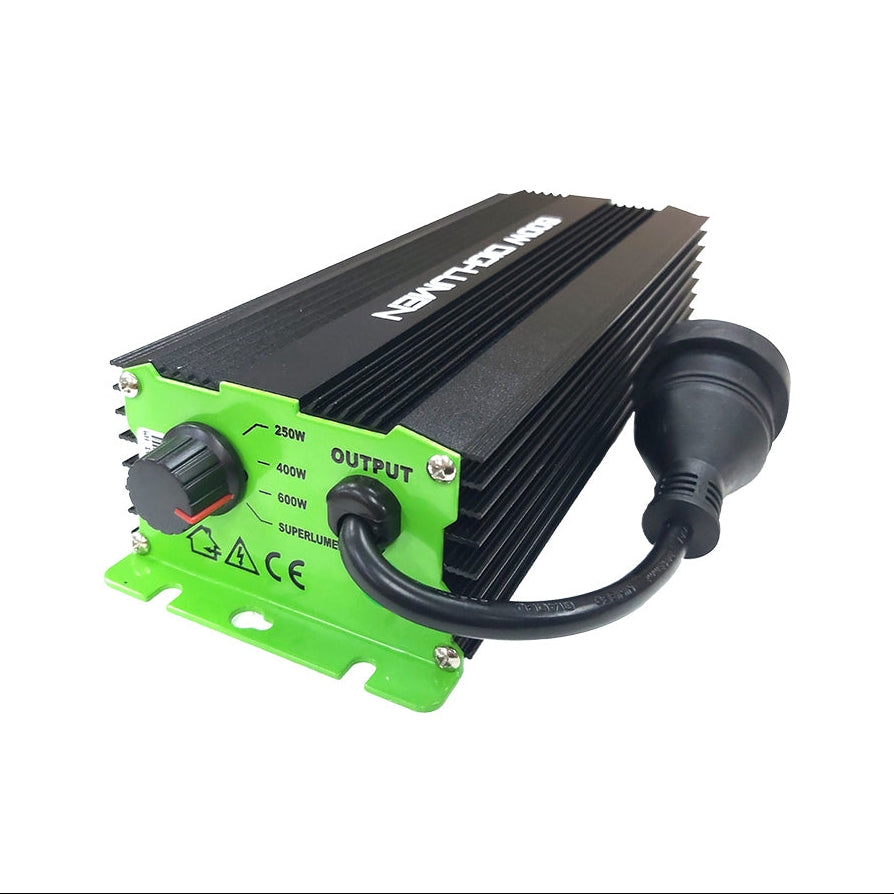

The DIGI-LUMEN 600W 4D Dimmable Digital Ballast is a high-performance electronic ballast engineered to deliver reliable, stable power for 600W single-ended Metal Halide (MH) and High Pressure Sodium (HPS) lamps. Designed for professional and hobby growers alike, it features four selectable power settings, allowing you to match light intensity to every stage of the growing cycle while improving energy efficiency and environmental control.
From propagation through to heavy flowering, the DIGI-LUMEN 4D provides precise power adjustment, helping growers optimise light output, reduce heat during warmer periods, and maximise flowering performance when conditions allow.
Built using advanced digital ballast technology, it delivers stable electrical performance even in demanding growing environments and incorporates integrated protection for long-term reliability.
Key Features
- 600W digital electronic ballast
- Four selectable power settings
- Compatible with 600W single-ended MH lamps
- Compatible with 600W single-ended HPS lamps
- Suitable for the complete plant growth cycle
- Dimmable output for heat management
- Stable electrical performance
- Fast-blow fuse protection
- Designed for demanding growing environments
- Suitable for high-voltage power supplies
- Quiet, efficient operation
- Energy-efficient digital technology
- Ideal for hydroponic and indoor grow rooms
Four Power Settings
The DIGI-LUMEN 4D ballast allows growers to adjust lamp output throughout the growing cycle.
| Mode | Output | Recommended Stage |
|---|---|---|
| Seed & Clone | 250W | Seedlings & Propagation |
| Vegetative / Power Save | 400W | Vegetative Growth |
| Flower | 600W | Standard Flowering |
| Super-Lumen | 660W* | Enhanced Flowering |
*Super-Lumen mode is recommended only when environmental conditions, particularly temperature, are suitable.
Dimmable Lighting Control
The built-in dimming function allows growers to quickly adjust light output to suit plant development and environmental conditions.
Lower power settings can help reduce heat output during warmer periods or while establishing young plants, while higher settings provide increased light intensity for mature flowering crops.
This flexibility allows a single ballast to support the entire cultivation cycle without requiring multiple lighting systems.
Compatible Lamps
The DIGI-LUMEN 600W 4D ballast is designed for use with:
- 600W Single-Ended High Pressure Sodium (HPS) lamps
- 600W Single-Ended Metal Halide (MH) lamps
This allows growers to switch between vegetative and flowering lamps using the same ballast.
Stable Digital Performance
DIGI-LUMEN digital ballast technology is designed to provide consistent lamp operation while maintaining electrical stability across a wide range of operating conditions.
The electronic design helps deliver efficient lamp performance while reducing energy losses commonly associated with older magnetic ballast technology.
Built-In Protection
The ballast incorporates a fast-blow fuse to provide protection against electrical faults and help safeguard the unit during operation.
Its robust construction is designed to withstand demanding indoor growing environments while maintaining reliable performance over extended operating periods.
Specifications
| Specification | Details |
|---|---|
| Brand | DIGI-LUMEN |
| Product | 4D Dimmable Digital Ballast |
| Power Rating | 600W |
| Ballast Type | Electronic Digital Ballast |
| Lamp Compatibility | 600W Single-Ended MH & HPS |
| Dimming Levels | 250W, 400W, 600W, 660W Super-Lumen |
| Seed & Clone Mode | 250W |
| Vegetative Mode | 400W |
| Flower Mode | 600W |
| Super-Lumen Mode | 660W |
| Protection | Fast-Blow Fuse |
| Suitable For | Indoor Horticultural Lighting |
Why Choose the DIGI-LUMEN 600W 4D Ballast?
The DIGI-LUMEN 4D combines flexibility, efficiency, and reliability in one compact digital ballast. Rather than using separate ballasts for different stages of plant growth, growers can simply adjust the output to suit propagation, vegetative growth, or flowering.
Its compatibility with both MH and HPS lamps, combined with selectable power levels and digital efficiency, makes it an excellent choice for growers looking to simplify their lighting setup while maintaining precise environmental control.
FAQs
What lamps are compatible with the DIGI-LUMEN 600W ballast?
The ballast is compatible with 600W single-ended Metal Halide (MH) and 600W single-ended High Pressure Sodium (HPS) lamps.
What are the four power settings?
The ballast offers 250W, 400W, 600W, and 660W Super-Lumen settings.
When should I use Super-Lumen mode?
Super-Lumen mode is intended for mature flowering plants when environmental conditions allow. It is generally best used when grow room temperatures remain within the desired range.
Can I dim the ballast during hot weather?
Yes. The dimming function allows growers to reduce lamp output to help manage grow room temperatures while maintaining adequate lighting.
Can I use one ballast for both vegetative growth and flowering?
Yes. The ballast supports both MH and HPS lamps, allowing one unit to power lighting throughout the entire growing cycle.
Does the ballast include protection against electrical faults?
Yes. The DIGI-LUMEN 4D incorporates a fast-blow fuse to help protect the ballast during operation.
